A Brand by Hankook Tire

laufenn

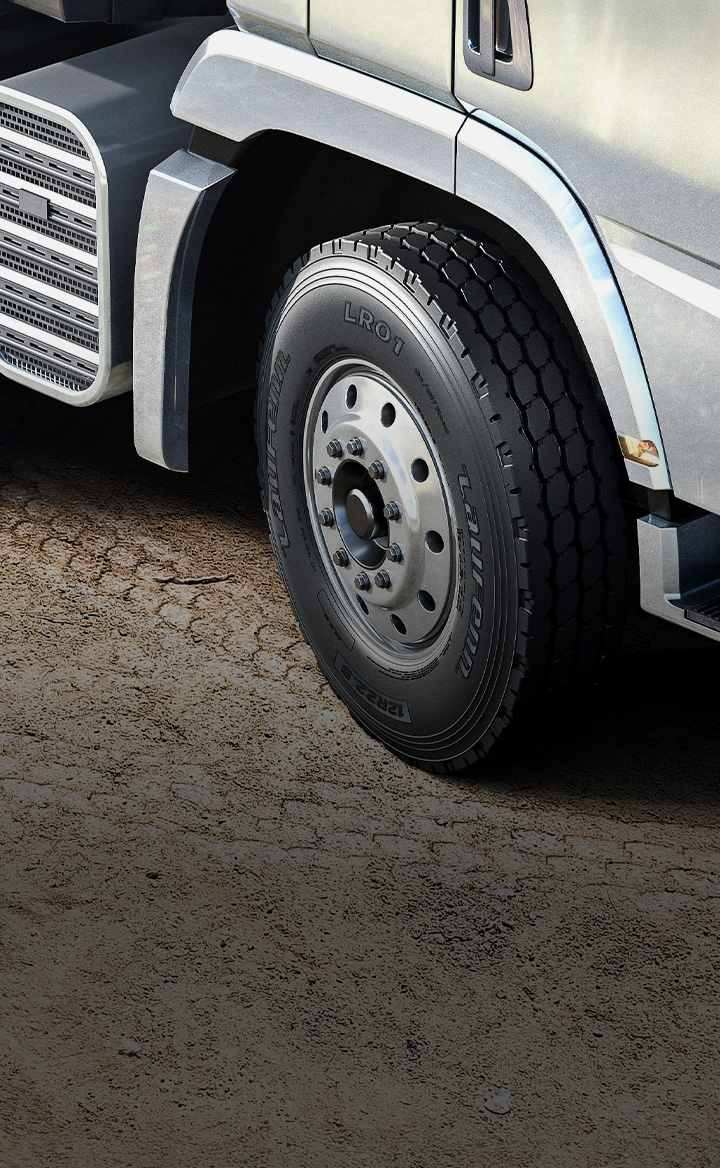

LR01

LR01

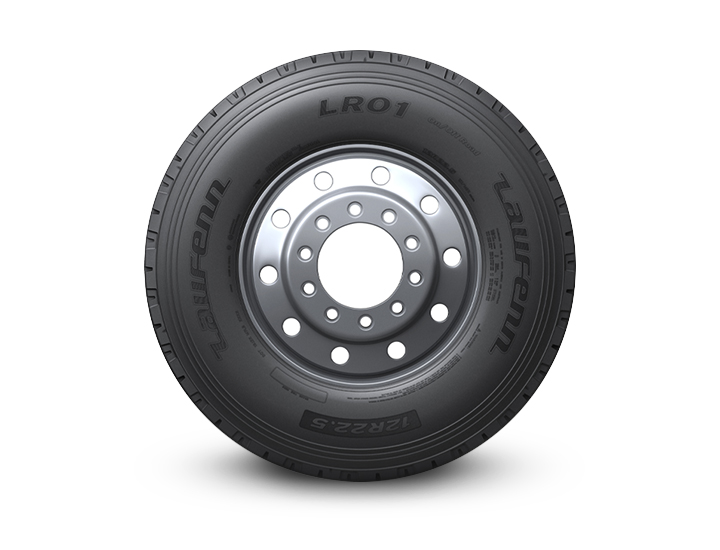

All-Position Tyre for On & Off-Road Applications

  • Anti-Chip & Cut

    Anti-Chip & Cut

  • Durability

    Durability

  • Traction

    Traction

Application

On & Off-Road

On & Off-Road

Features

  • Anti-chip compound in tread area
  • Reinforced bead structure for increased durability
  • Good traction in demanding surface conditions
winter_ms winter_sf

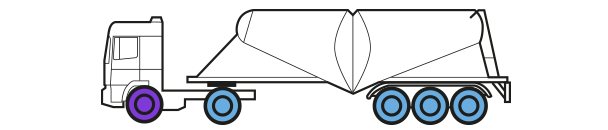

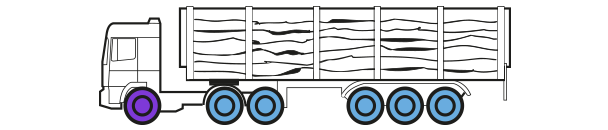

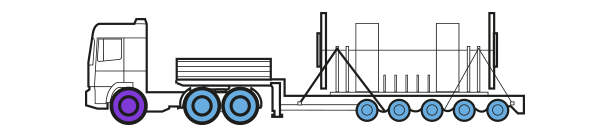

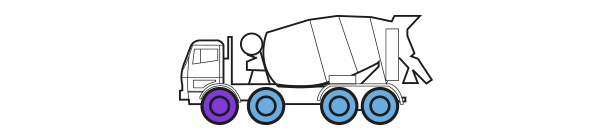

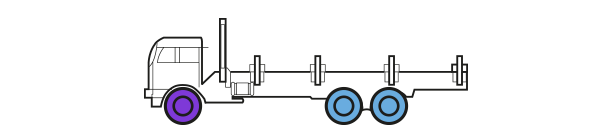

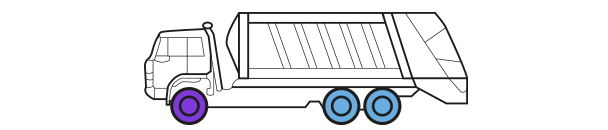

Vehicles & Position

Recommended position


Available position

All-Position

Regrooving
Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of the tread.

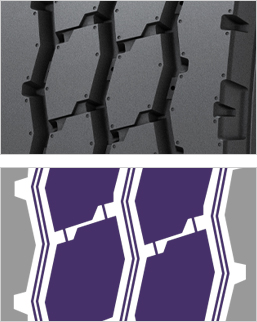

  • New tread

    New tread

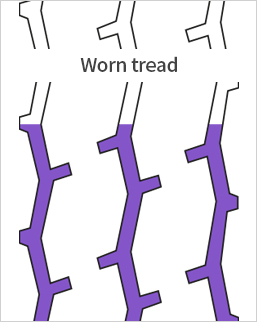

  • Regrooved tread

    Regrooved tread

Regrooving Technical Data
Size
(LI/SS)		 Type (TT/TL) Tread Depth (mm) Regrooving Depth
(mm)		 Regrooving Width
(mm)
13R22.5
(156/150K)		 TL 18.5 3.0 10 - 12
315/80R22.5
(156/150K)		 TL 16.1 3.0 11 - 13

Available Sizes

13R22.5
  • LI/SS

    156/150K

  • PR

    P18

  • Measured Rim

    9.75

  • Max.Air S
    (PSI/bar)

    127/8.75

  • Max.Air D
    (PSI/bar)

    127/8.75

  • Max.Load S
    (kgs/lbs)

    4000/8820

  • Max.Load D
    (kgs/lbs)

    3350/7390

  • Overall
    Diameter
    (mm)

    1124

  • Section
    Width
    (mm)

    317

  • Tread
    Width
    (mm)

    244

  • Tread
    Depth
    (mm)

    18.5

  • Static Loaded
    Radius
    (mm)

    525

  • Fuel
    Efficiency

    D

  • Wet Grip

    C

  • Noise Level

    A 71

This is a comprehensive list of products produced. Some sizes may not be stocked locally but can be ordered as required.
