LF22

LF22

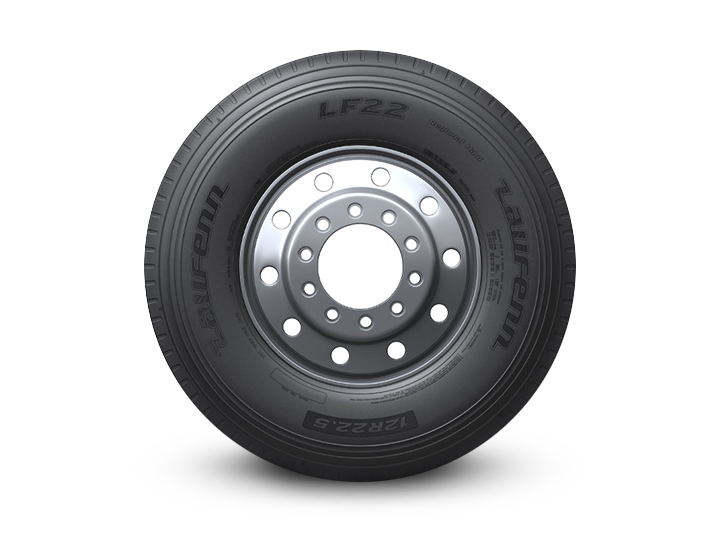

All-Position Tyre for Regional Applications

  • Wear life

    Wear life

  • Handling

    Handling

  • Anti-Chip & Cut

    Anti-Chip & Cut

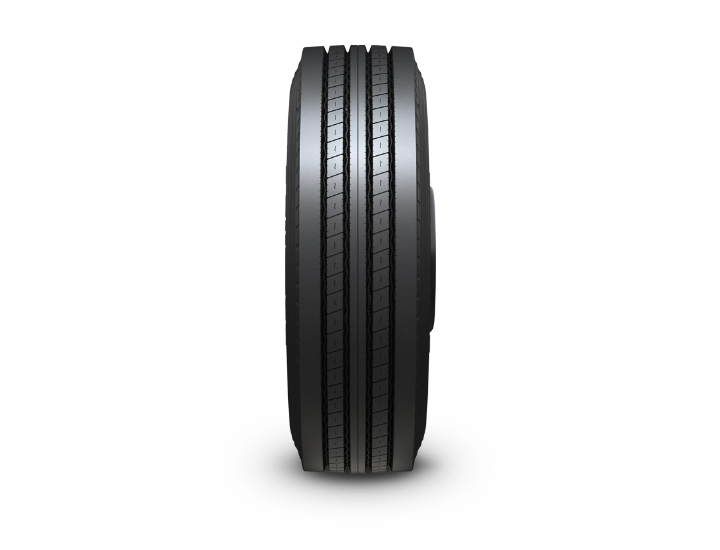

  • Fuel Efficiency

    Fuel Efficiency

Application

Regional Haul

Regional Haul

Features

  • Exceptional handling and responsiveness on all road conditions
  • Chip & cut resistant tread compounds
winter_ms winter_sf

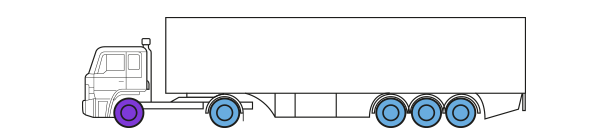

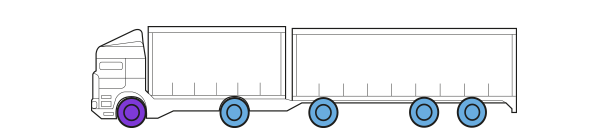

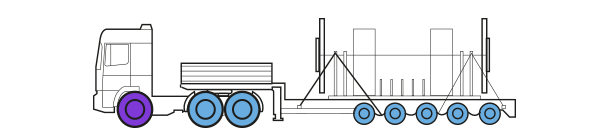

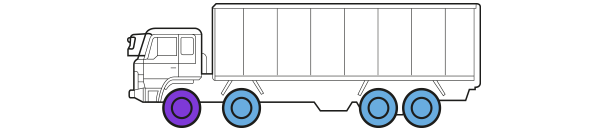

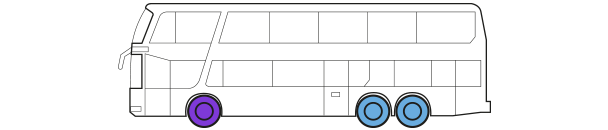

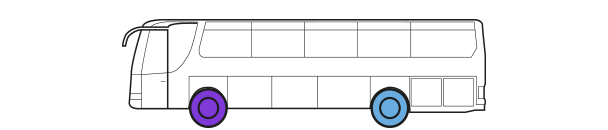

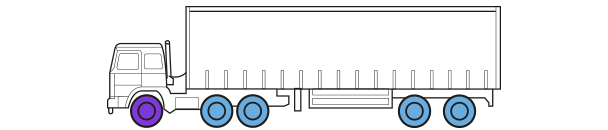

Vehicles & Position

Recommended position


Available position

All-Position

Regrooving
Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of their tread.

  • New tread

    New tread

  • Regrooved tread

    Regrooved tread

Regrooving Technical Data
Size
(LI/SS)		 Type (TT/TL) Tread Depth (mm) Regrooving Depth
(mm)		 Regrooving Width
(mm)
295/80R22.5
(154/149M)		 TL 15.5 3.0 7 - 9
315/70R22.5
(156/150L)		 TL 14.0 3.0 9 - 11
315/80R22.5
(156/150L)		 TL 15.5 3.0 10 - 11
385/65R22.5
(160K)		 TL 15.5 3.0 10 - 11

Available Sizes

295/80R22.5
  • LI/SS

    154/149M

  • PR

    P18

  • Measured Rim

    9.00

  • Max.Air S
    (PSI/bar)

    123/8.5

  • Max.Air D
    (PSI/bar)

    123/8.5

  • Max.Load S
    (kgs/lbs)

    3750/8270

  • Max.Load D
    (kgs/lbs)

    3250/7160

  • Overall
    Diameter
    (mm)

    1052

  • Section
    Width
    (mm)

    306

  • Tread
    Width
    (mm)

    250

  • Tread
    Depth
    (mm)

    15.5

  • Static Loaded
    Radius
    (mm)

    490

  • Fuel
    Efficiency

    D

  • Wet Grip

    B

  • Noise Level

    A 70

This is a comprehensive list of products produced. Some sizes may not be stocked locally but can be ordered as required.
