A Brand by Hankook Tyre

laufenn

LF90

LF90

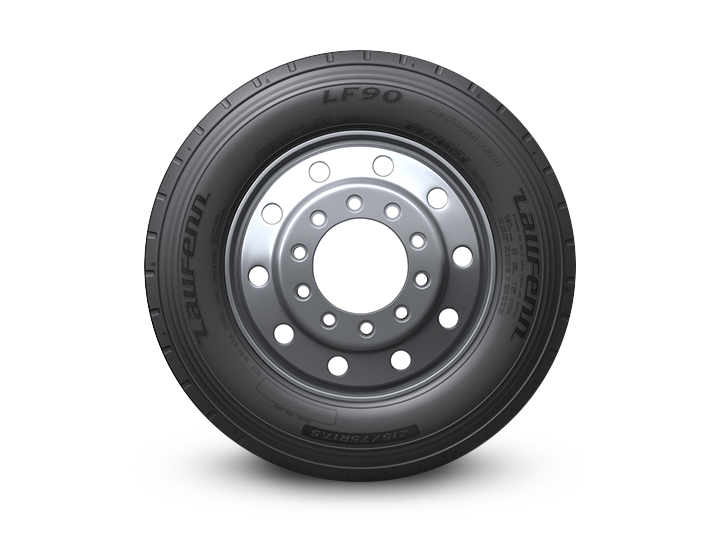

Trailer Tyre for Regional Applications

  • Wear Life

    Wear Life

  • Durability

    Durability

  • Fuel Efficiency

    Fuel Efficiency

Application

Regional Haul

Regional Haul

Features

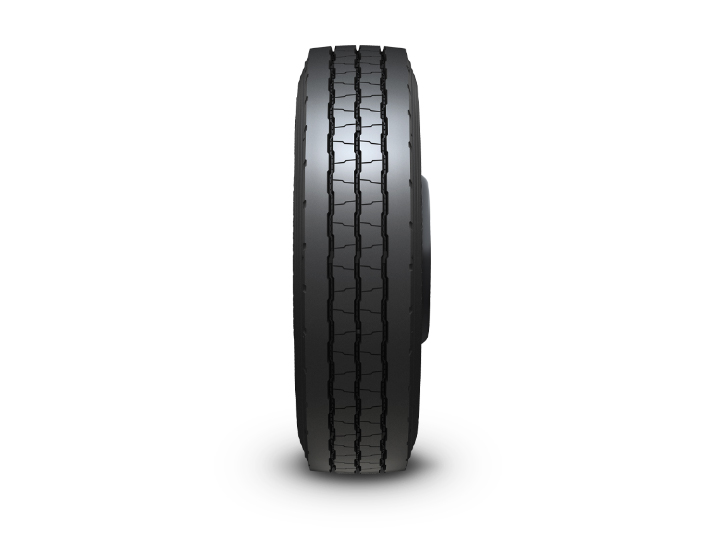

  • Tread pattern design optimised for long even wear
  • Reinforced bead structure for durability
winter_ms

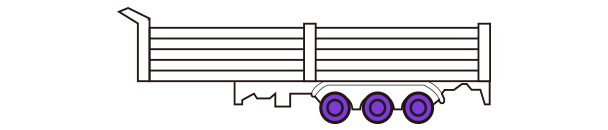

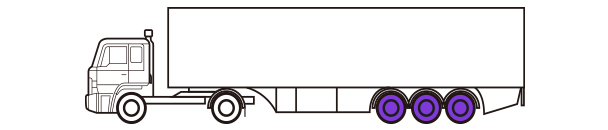

Vehicles & Position

Recommended position

Trailer

Regrooving
Technical Data

Laufenn offers all the regrooving data suited to each tyre range, according to the specific features of the tread.

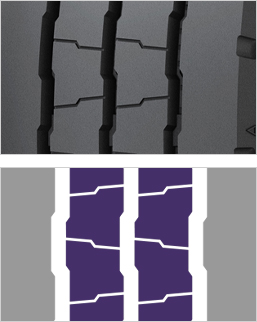

  • New tread

    New tread

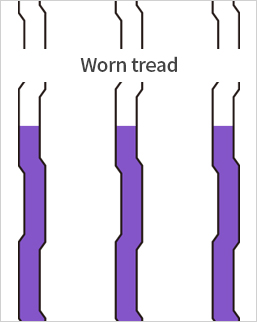

  • Regrooved tread

    Regrooved tread

Regrooving Technical Data
Size
(LI/SS)		 Type (TT/TL) Tread Depth (mm) Regrooving Depth
(mm)		 Regrooving Width
(mm)
215/75R17.5
(135/133J)		 TL 11.6 - -
265/70R19.5
(143/141J)		 TL 12.1 - -

Available Sizes

215/75R17.5
  • LI/SS

    135/133J

  • PR

    P16

  • Measured Rim

    6

  • Max.Air S
    (PSI/bar)

    123/8.5

  • Max.Air D
    (PSI/bar)

    123/8.5

  • Max.Load S
    (kgs/lbs)

    2180/4805

  • Max.Load D
    (kgs/lbs)

    2060/4540

  • Overall
    Diameter
    (mm)

    774

  • Section
    Width
    (mm)

    216

  • Tread
    Width
    (mm)

    174

  • Tread
    Depth
    (mm)

    11.6

  • Static Loaded
    Radius
    (mm)

    362

  • Fuel
    Efficiency

    D

  • Wet Grip

    B

  • Noise Level

    70

Size

Apply
